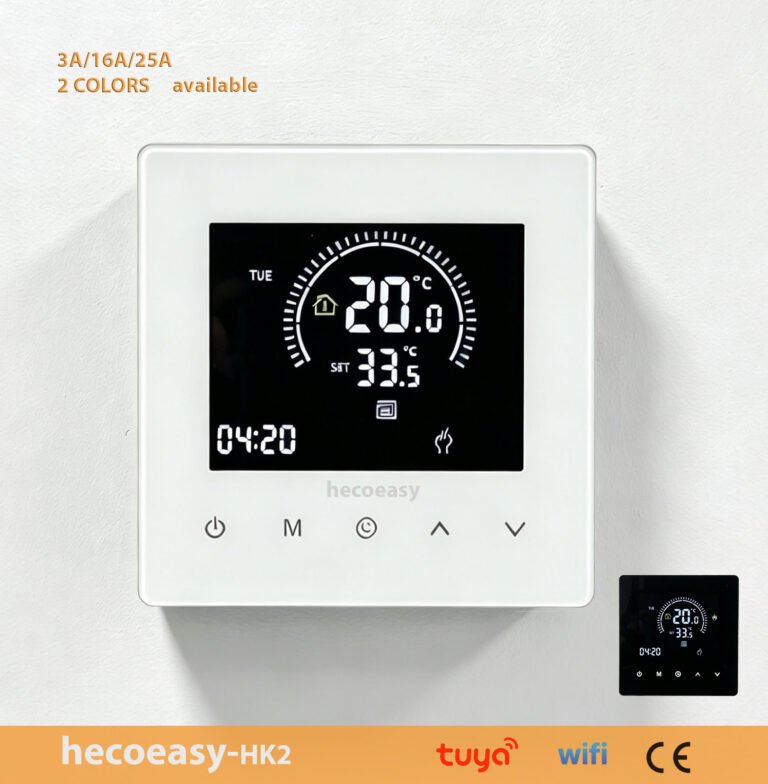

HK2W Wifi Floor Heating Thermostat -

HK2W Wifi Floor Heating Thermostat

It’s an intelligent digital thermostat which is for floor heating system. It controls the operation status of floor heating equipment by comparing the ambient temperature and the set temperature. It makes you comfortale while achieving energy efficiency.

Feature

Microcomputer control technology
Full-screen display, touch buttons, elegant design and easy to operate
High/Low temperature protection
5+2 days programmable
Max/Min temperature is adjustable
Backlight brightness is adjustable

Technical Data

Temperature Sensor: NTC
Temperature Accuracy: ±1℃
Display: LCD
Working Environment: -5~50°C
Power Consumption: <1W
Temperature Setting: 5～60°C
Display Range: 0～50°C
Input Voltage: AC 90-240V
Load Current: 3A(resistive), 16A, 25A

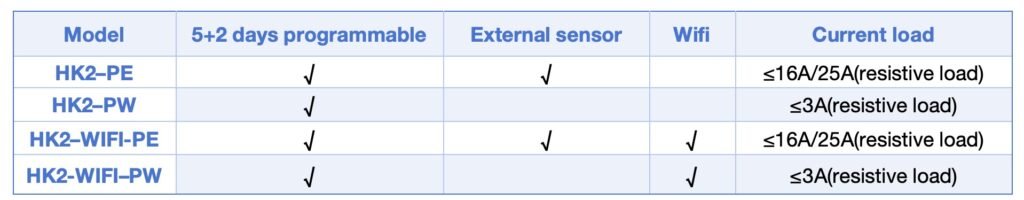

Model Selection

Wiring Diagram

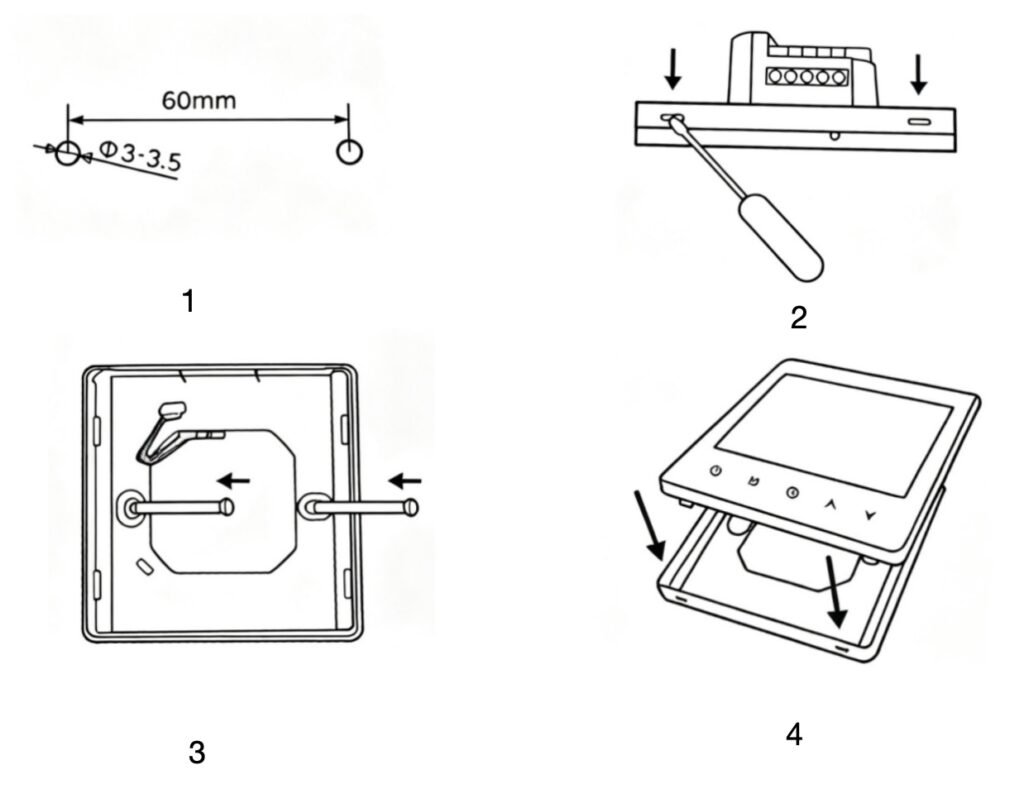

Installation

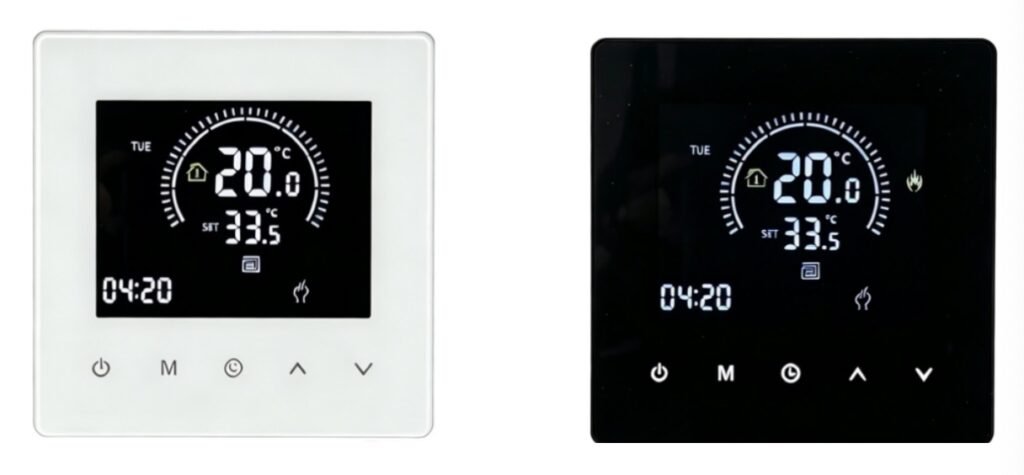

Two Colors
