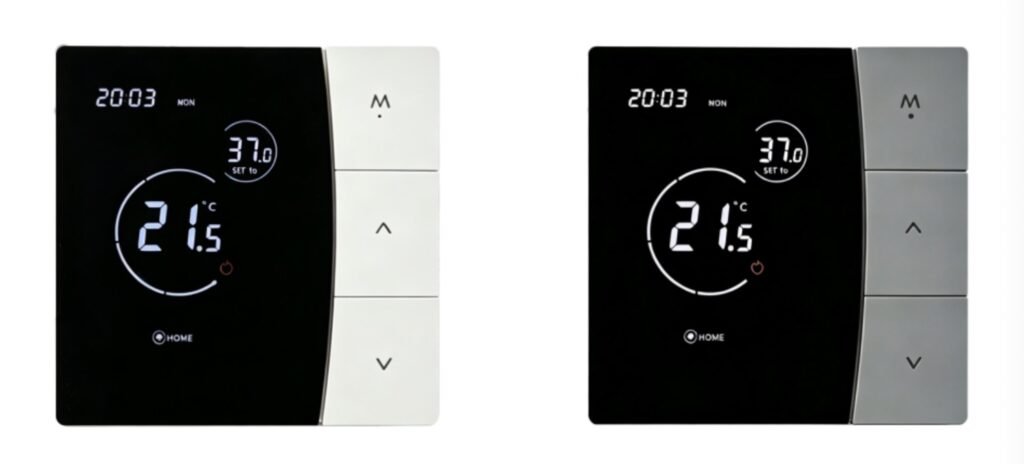

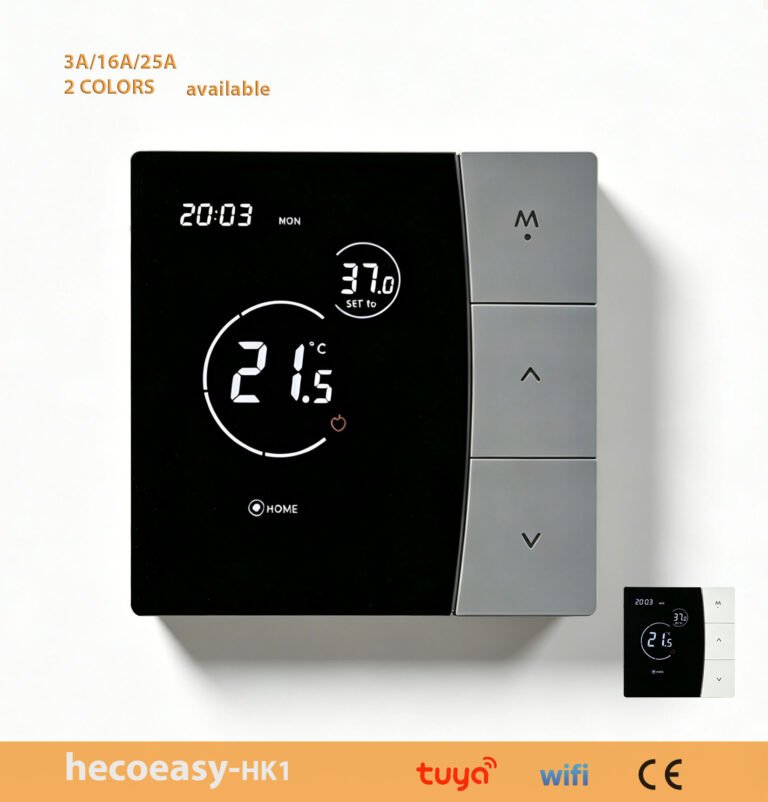

HK1G Wifi Floor Heating Thermostat -

It’s an intelligent digital thermostat which is for floor heating system. It controls the operation status of floor heating equipment by comparing the ambient temperature and the set temperature. It makes you comfortale while achieving energy efficiency.

Feature

Microcomputer control technology
The buttons are smooth action
High/Low temperature protection
5+2 days programmable
Max/Min temperature is adjustable
Backlight brightness is adjustable
3 MODE: Manual mode, Automatic mode and Energy saving mode

Technical Data

Temperature Sensor: NTC
Temperature Accuracy: ±1℃
Display: LCD
Working Environment: -5~50°C
Power Consumption: <1W
Temperature Setting: 5～40°C
Display Range: 0～50°C
Input Voltage: AC 90-240V
Load Current: 3A(resistive), 16A

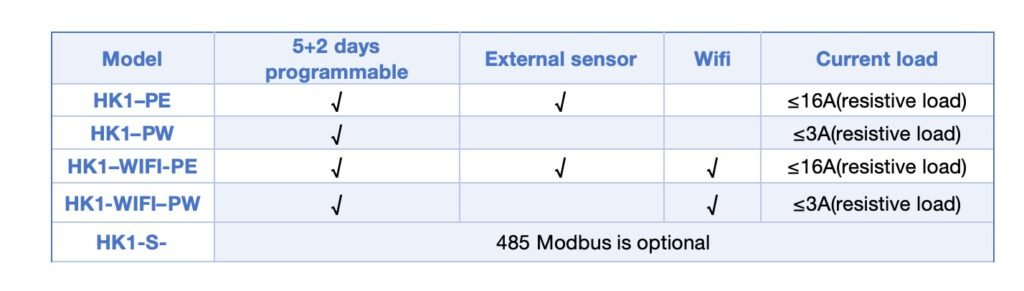

Model Selection

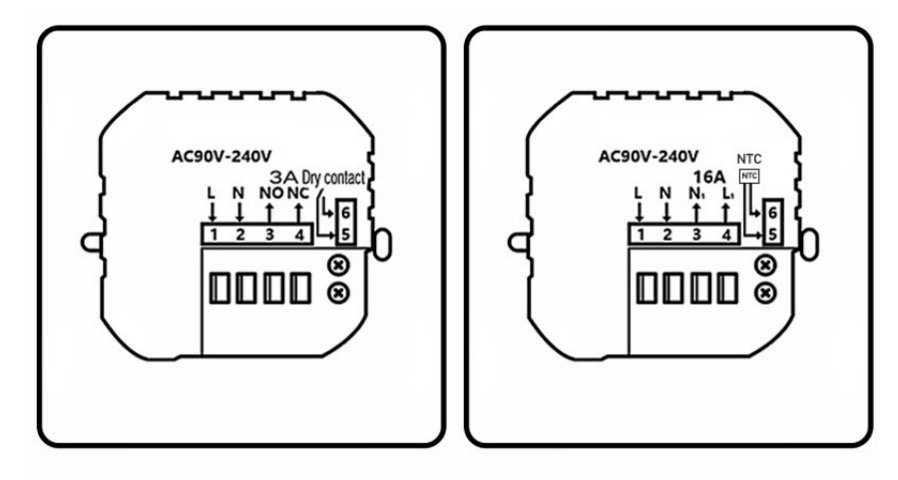

Wiring Diagram

Installation
