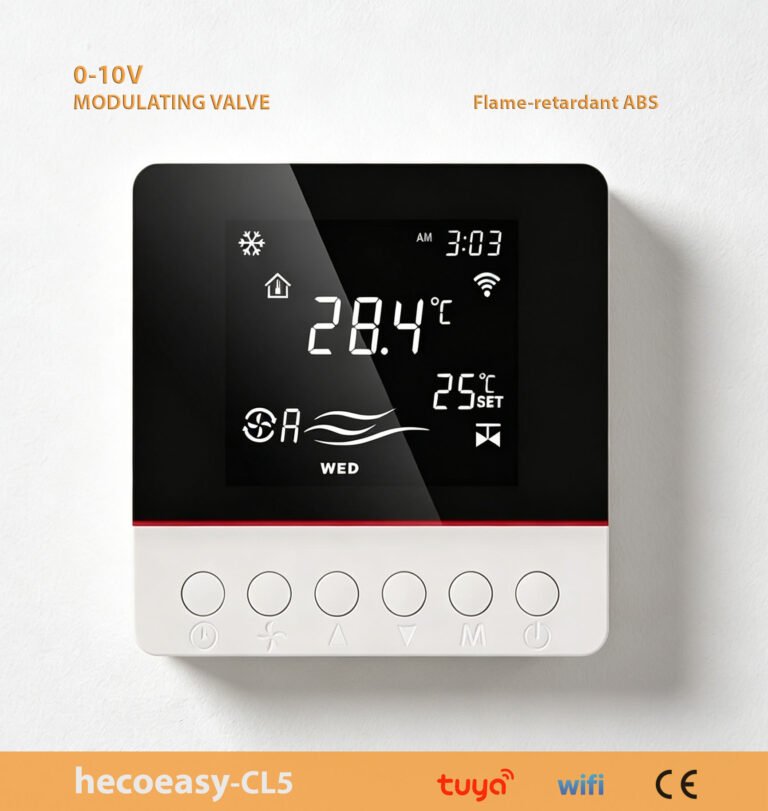

CL5 0-10V Modulating Valve Thermostat

CL5 0-10V Modulating Valve Thermostat

  • Model-CL5

It’s a 220V modulating thermostat, which could control 0-10V modulating valve for fan coil system. Wire Modbus 485 and Wireless Lora is optional.

Send an inquiry

Product Overview

The CL5 0-10V Modulating Valve Thermostat is designed for temperature control in HVAC systems using 0-10V modulating valves. It provides a 0-10V control signal to regulate valve operation according to temperature control requirements.

Key Features

  • 0-10V modulating valve control
  • Internal and external temperature sensors
  • Low-temperature protection
  • Power-off memory
  • Optional RS485 Modbus communication
  • Optional LoRa wireless communication

Technical Specifications

  • Working voltage: AC90-250V, 50/60Hz
  • Control signal: 0-10V
  • Temperature Accuracy: 0.1 °C
  • Set temperature: 5~45°C
  • Working humidity: 5~95RH%
  • Load Current: 5A( Resistive load)  3A (Sensory load)
  • IP grade: IP20
  • Size: 86x86mm

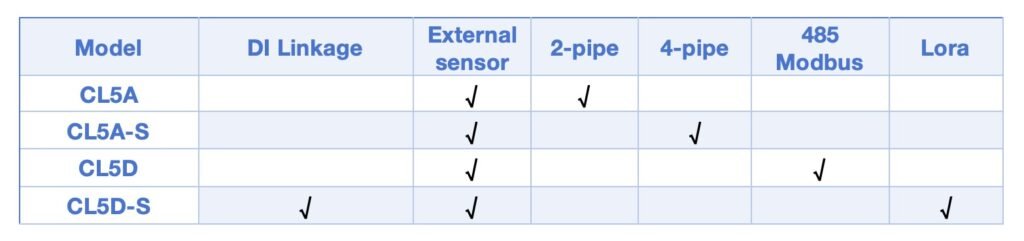

Model Selection Guide

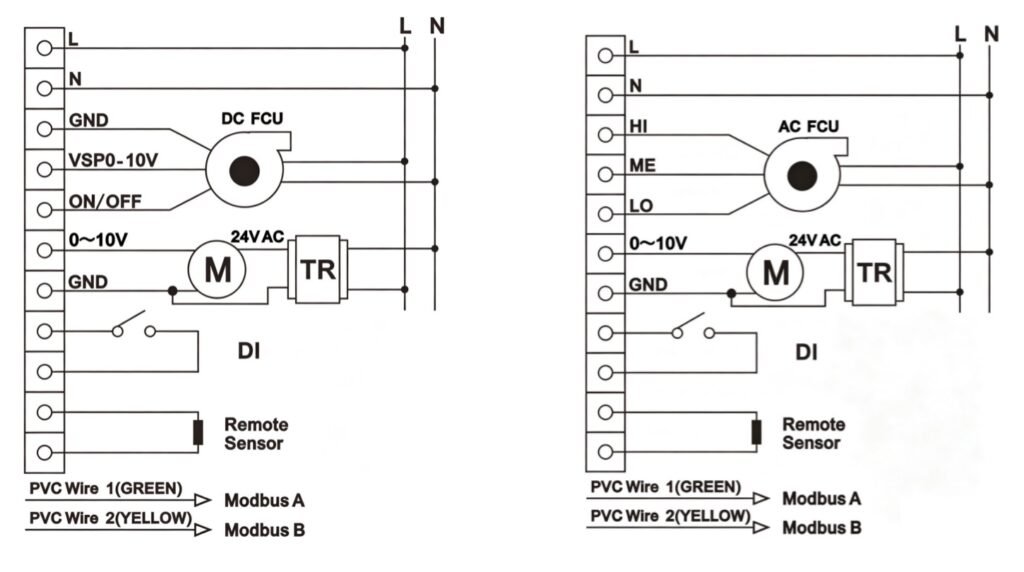

Wiring Diagram

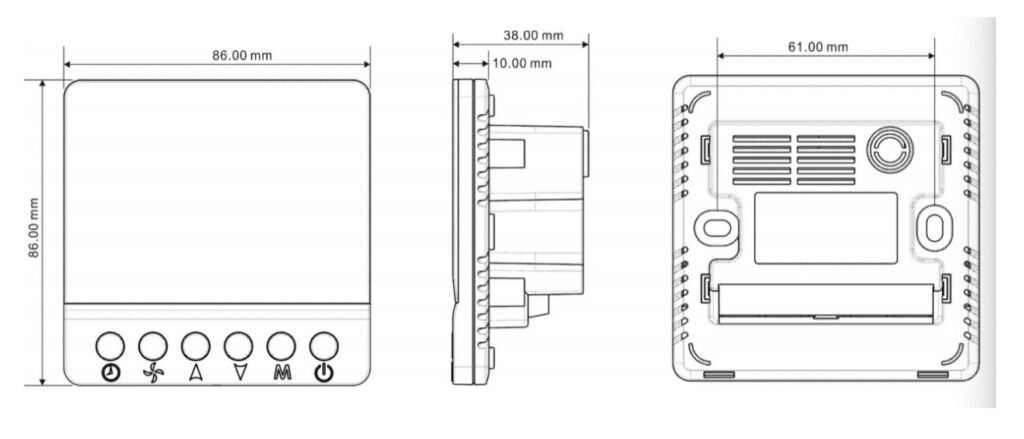

Dimension
