CL3 HVAC Thermostat with 7 Operating Modes

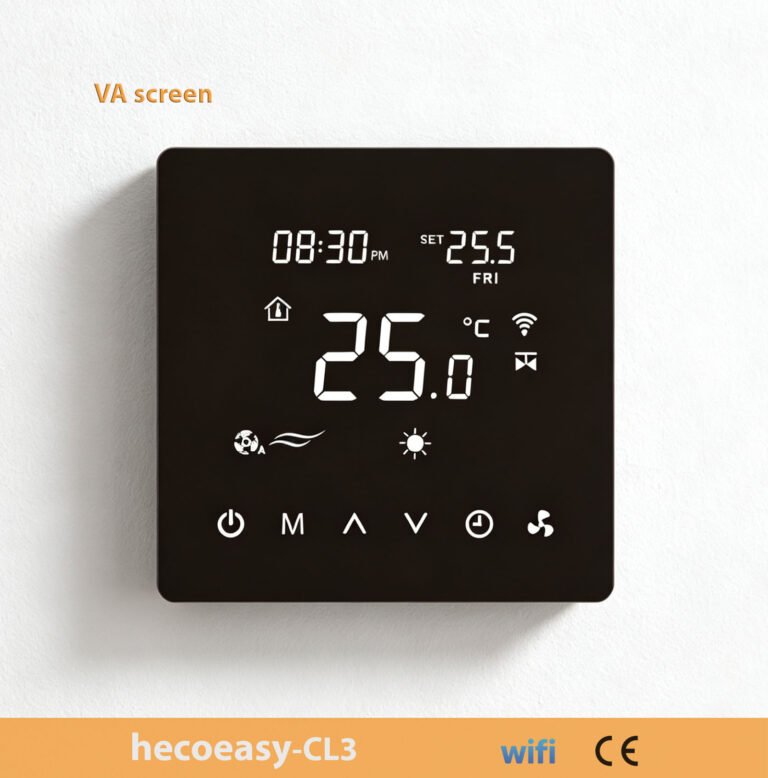

It’s high-end negative display VA LCD screen, delivering high brightness and high contrast—crystal clear and bright display quality, just like a smartphone.

It is equipped with a high-precision NTC sensor, which constantly detects the ambient temperature and automatically adjusts the optimal fan speed and switches the electric valve on/off to maintain a constant indoor temperature. This creates a more comfortable living environment for you.

Product Overview

The CL3 HVAC Thermostat is designed for temperature control in heating, cooling, and ventilation applications. It offers seven operating modes, including Cooling, Heating, Fan Only, Auto, Water Heating, Quick Heat, and Quick Cool, providing flexible operation for different HVAC requirements.

Key Features

ITO capacitive touch keys
Seven operating modes: Cooling, Heating, Fan Only, Auto, Water Heating, Quick Heat, and Quick Cool
Clock function
Power-off memory
Low-temperature anti-freeze protection
RS485 communication

Technical Specifications

Working voltage: AC90-250V, 50/60Hz
Temperature Accuracy: 0.1 °C
Set temperature: 10~30°C
Display temperature: 0~60°C
NTC sensor
Working humidity: 5~95RH%
Load Current: 5A( Resistive load) 2A (Sensory load)
Size: 86x86mm

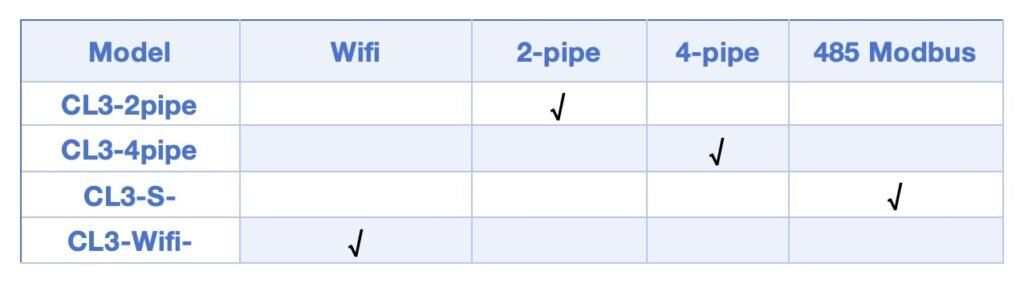

Model Selection Guide

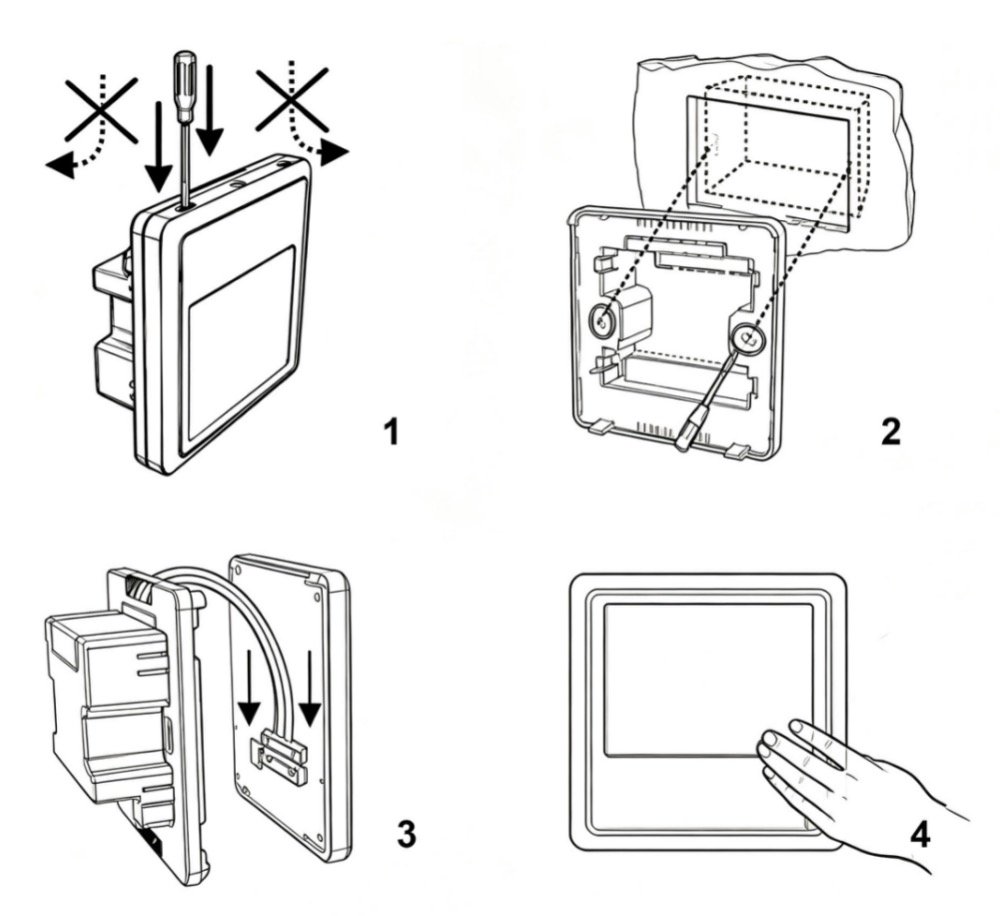

Installation Guide

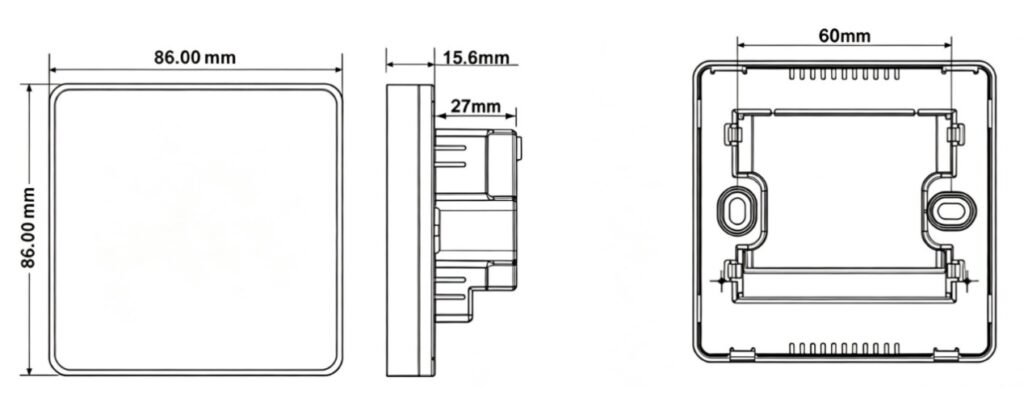

Dimension
